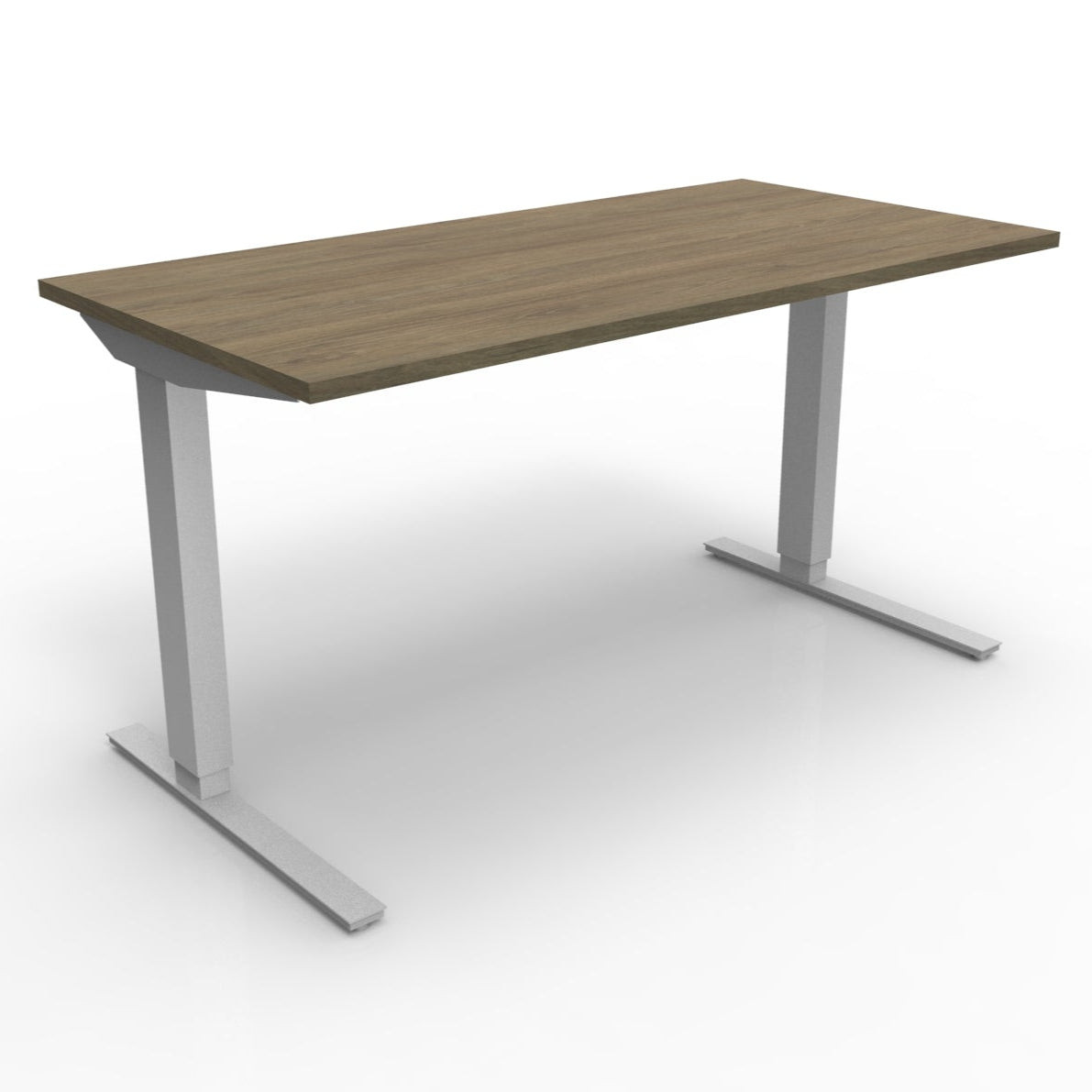

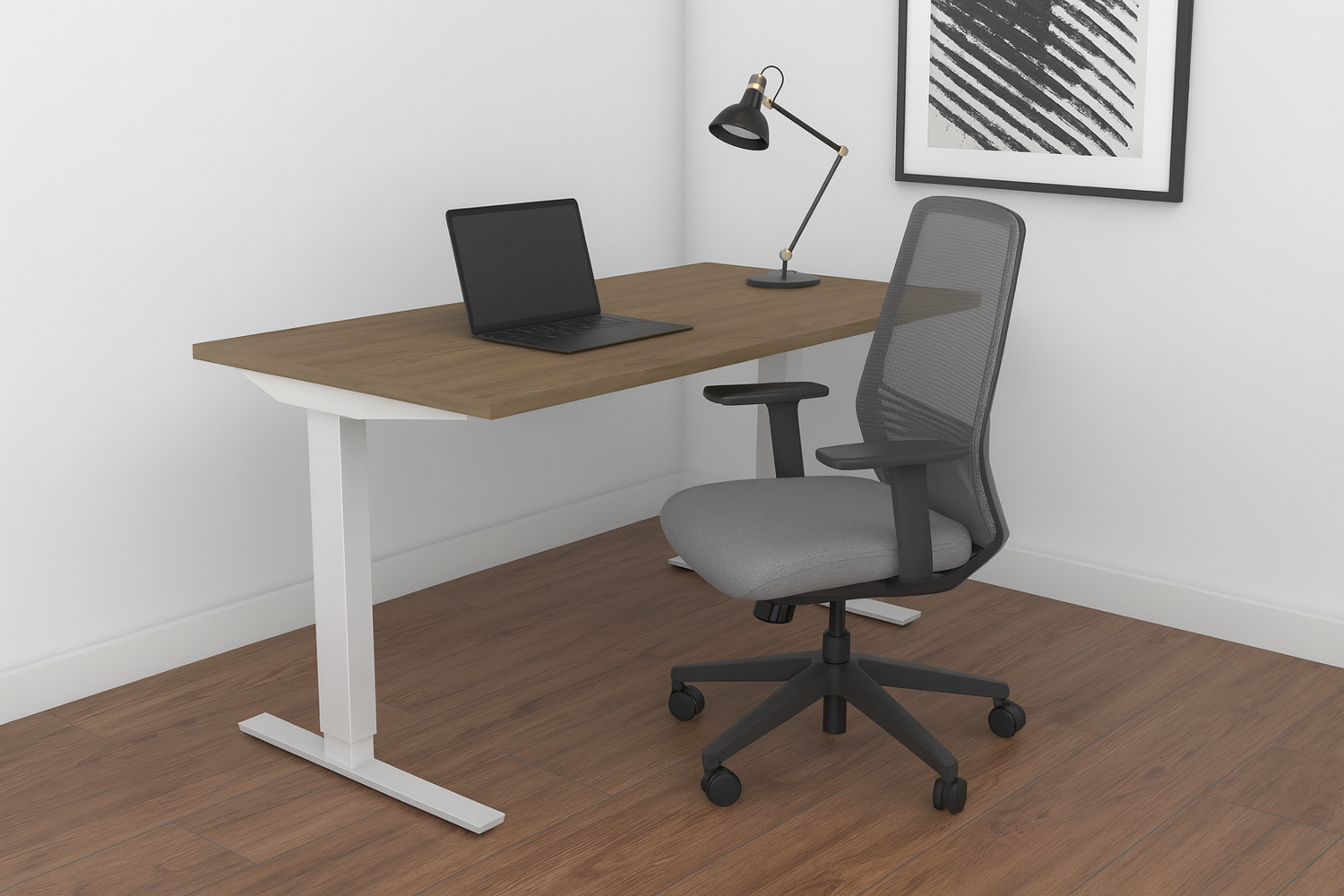

Three Stage/2 Motor
Frame Colors : Silver, White, Black
Worksurface Colours: Choose from any standard
Laminate finish
3/4" Levelling Range
Height Range: 23”-48.75” (Frame Height)
Frame Width Adjustable for Tops (42”w-72”w)
Load Capacity:120kg/265lbs
Full Load Speed: 30mm/s
Input Voltage: 90V-230 (110V North America)
Output Voltage: DC24V
3 Memory Function Handset w Digital Display
True Anti-collision Function
Noise: <35db
Meets ANSI/BIFMA x5.5 Standard
154" Power Cord Length

All Fluidconcepts standard laminates are available in TFL or HPL. Fluidconcepts utilizes 3/4" and 1" thick TFL is thermally bonded paper applied to particleboard or MDF panel substrates. TFL finished on two sides as it is applied to the front and back of the panel to keep the panel balanced. TFL is used on worksurfaces, storage case and fronts.PL is a more durable laminate than TFL. HPL is more costly than TFL and generally used in areas with higher use where additional durability and impact resistance is needed institutional, education) It is made of several sheets of paper that get bonded together using high pressure. Generally, worksurfaces and/or storage fronts utilize HPL where needed.
